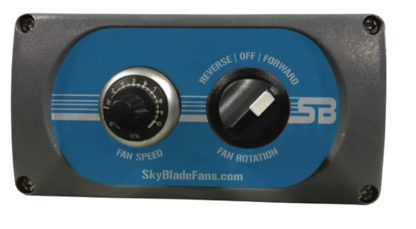

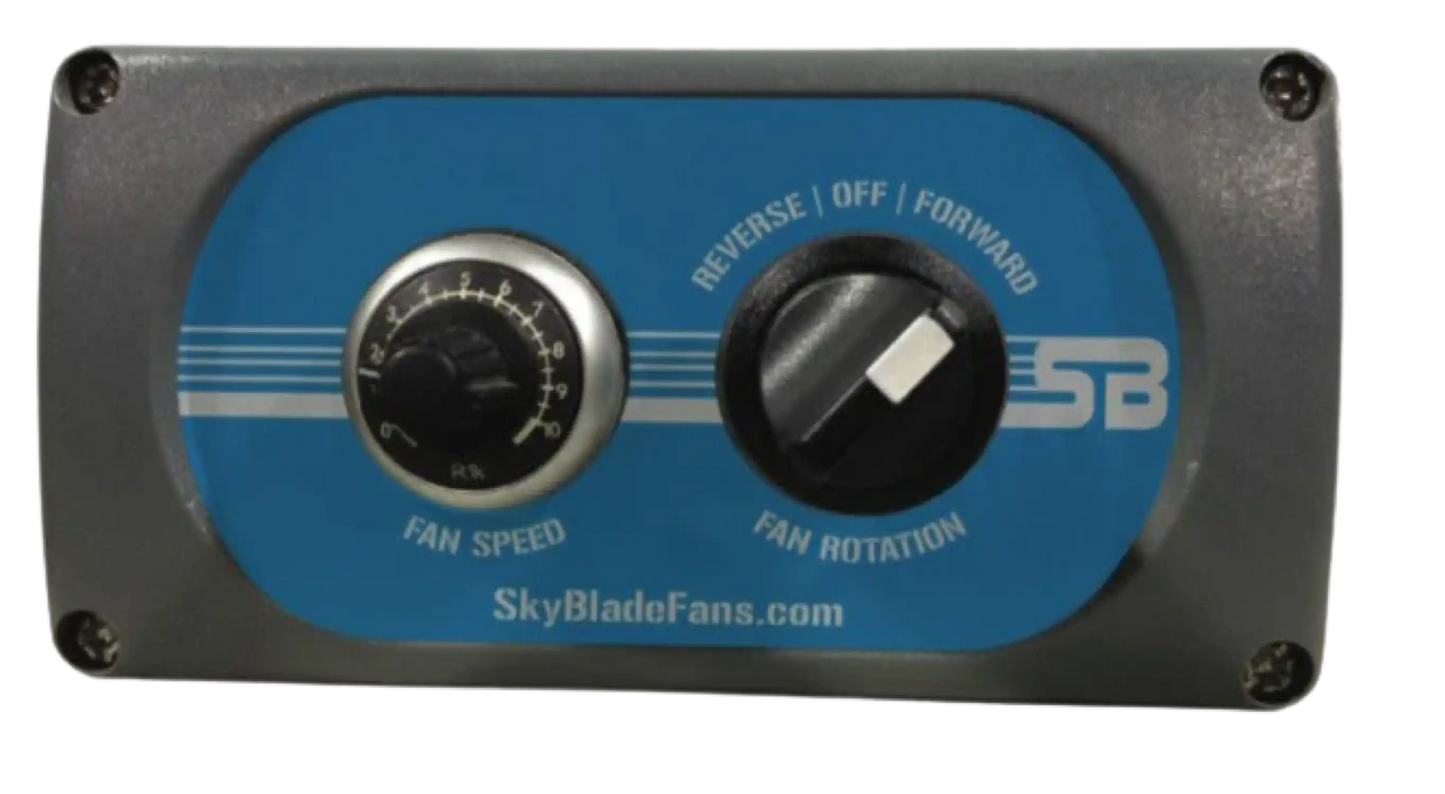

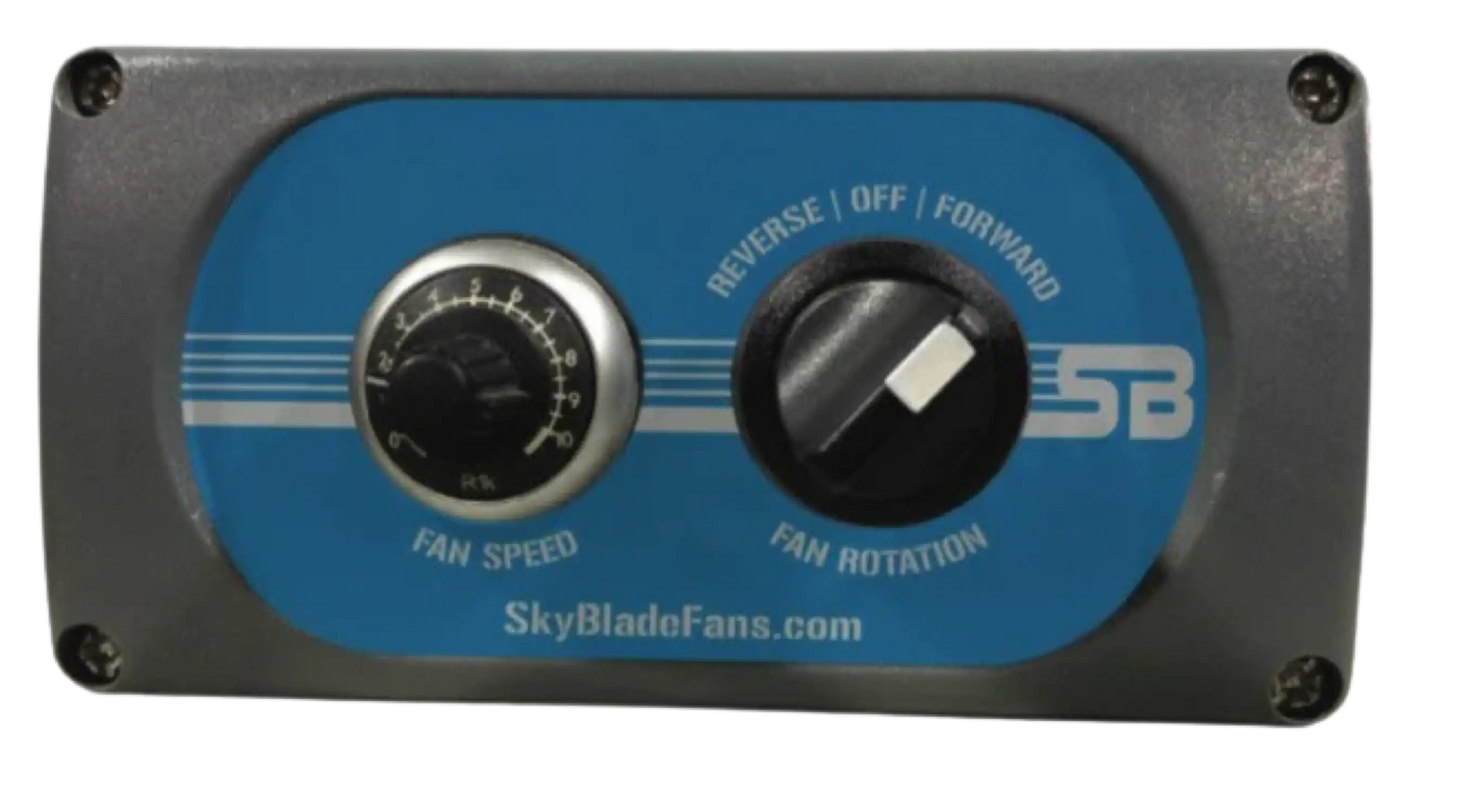

Canarm SY-1034-1 Single Yoke Fan Control New - SY-1034-1
Includes Fwd/Off/Rev switch and 0-10 speed pot to control fan speed. 100 Ft., 6-core shielded cable. One per fan required.
What our Experts Think
-
Precise single‑fan control
The Canarm SY‑1034‑1 Single Yoke Fan Control is designed to individually manage industrial and commercial fan speed and direction, giving you full control over airflow and destratification.
-
Simple forward/off/reverse switch
Includes an easy‑to‑use Fwd/Off/Rev selector so you can optimize airflow for cooling or destratification, depending on need.
-
Manual speed adjustment
Comes with a 0–10 V analog speed potentiometer (rotary dial) for stepless fan speed control, ideal for fine‑tuning performance in variable environments.
-
Ready to install with cable included
Supplied with a 100 ft, 6‑core shielded cable, facilitating straightforward connection between control and fan.
-
Rugged and weather‑ready design
Housed in a NEMA 4X/IP65‑rated enclosure, this control resists water and dust intrusion for dependable operation in demanding settings.
-
Flexible mounting & compatibility
Easily wall‑mounted and compatible with 0–10 V fan systems driven by a VFD, making it suitable for many Canarm fans and other industrial models.
Q&A
Q1: What is the Canarm SY‑1034‑1 fan control used for?
A: It’s a single yoke fan controller designed to manually control one industrial or commercial direct‑drive fan, letting you adjust speed and direction (forward/reverse) for cooling or destratification.
Q2: What controls are included on this unit?
A: Includes a Fwd/Off/Rev rocker switch plus a 0‑10 V speed potentiometer dial so you can easily vary fan speed.
Q3: What’s in the box?
A: Comes with the fan controller, 100 ft of 6‑core shielded cable, and user manual.
Q4: How is it powered and connected?
A: It accepts a 0‑10 V DC analog control signal (typically from a VFD or compatible fan), with 6‑core shielded wiring included for reliable connection.
Q5: What environments is it rated for?
A: Rated NEMA 4X/IP65, making it resistant to dust and splashes — suitable for many industrial and commercial settings.
Q6: What mounting and size specs should I expect?
A: Designed to be wall‑mountable, the controller measures roughly 3″ W × 2″ H × 5″ D and weighs about 0.75 lb.
Q7: Can this control be used with multiple fans?
A: No — this model controls one individual fan. For two or more fans, see Canarm’s DY‑1034‑2 (double) or TY‑1034‑3 (triple yoke) controllers.
Q8: What types of fans is it compatible with?
A: Best suited for Canarm direct‑drive industrial/commercial fans or similar systems that accept a 0‑10 V control signal and need speed/direction adjustment
Maintenance Tips
-
Inspect wiring connections: Ensure all terminals and pigtails are tight and free of corrosion to maintain reliable electrical control.
-
Clean contacts & housing: Remove dust and debris from the control housing and switch contacts to prevent misfires or poor conductivity.
-
Check mounting stability: Verify the yoke is securely mounted and aligned to avoid vibration or loosening during operation.
-
Test control operation: Periodically cycle the fan control manually to confirm smooth switching and proper response.
-
Avoid moisture exposure: Keep the control dry and sealed in damp environments to prevent short‑circuits and corrosion.
-
Professional electrical check: Have a qualified technician inspect the control during routine HVAC or electrical system service to ensure safety and performance.
